Wall Concealed Faucet System
- Instruction of constructing wall concealed open water panel box

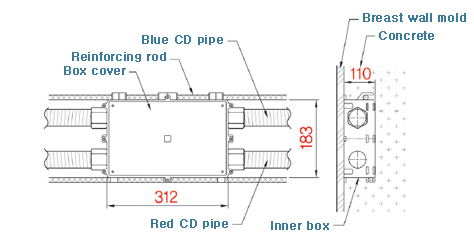

- 1. How to install a water panel box
- a. Fix the box to an iron reinforcing rod, and connect the cold and hot water pipes after drywall reinforcing rod process.
b.Install a mold after installing a box to an iron reinforcement.
c. Concrete working after installing a mold.

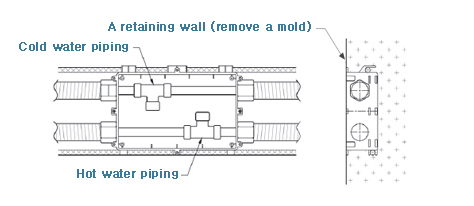

- 2. Install pipes after removing mold
- a. Remove mold after curing concrete
b. Connect TEE or ELBOW to pipes as shown in the picture after removing the protective cover
c. Connect a cold/hot water flexible hose to a pipe inside the box Remove foreign substances in pipes and check for problems after testing the water pressure

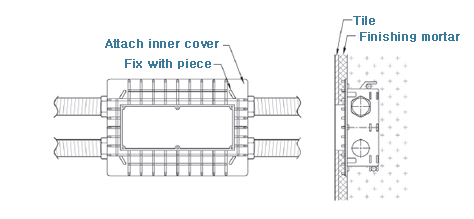

- 3. Attach inner cover and do tile work
- a. Install inner cover to the inside box in advance to make the drywall waterproof
b. Perform tile process after making the drywall waterproof
c. Remove inner protective cover
d. Install a concealed water panel box to the drywall

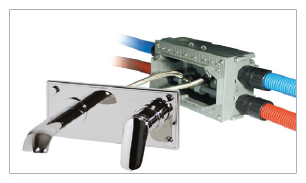

The ``PREO’’ concealed series is an innovative water panel box system that allows you to install and repair faucets without damaging interior finishing materials.
